Interlink GT4.0

4 MW mobile gas turbine generator. Park, plug and power.

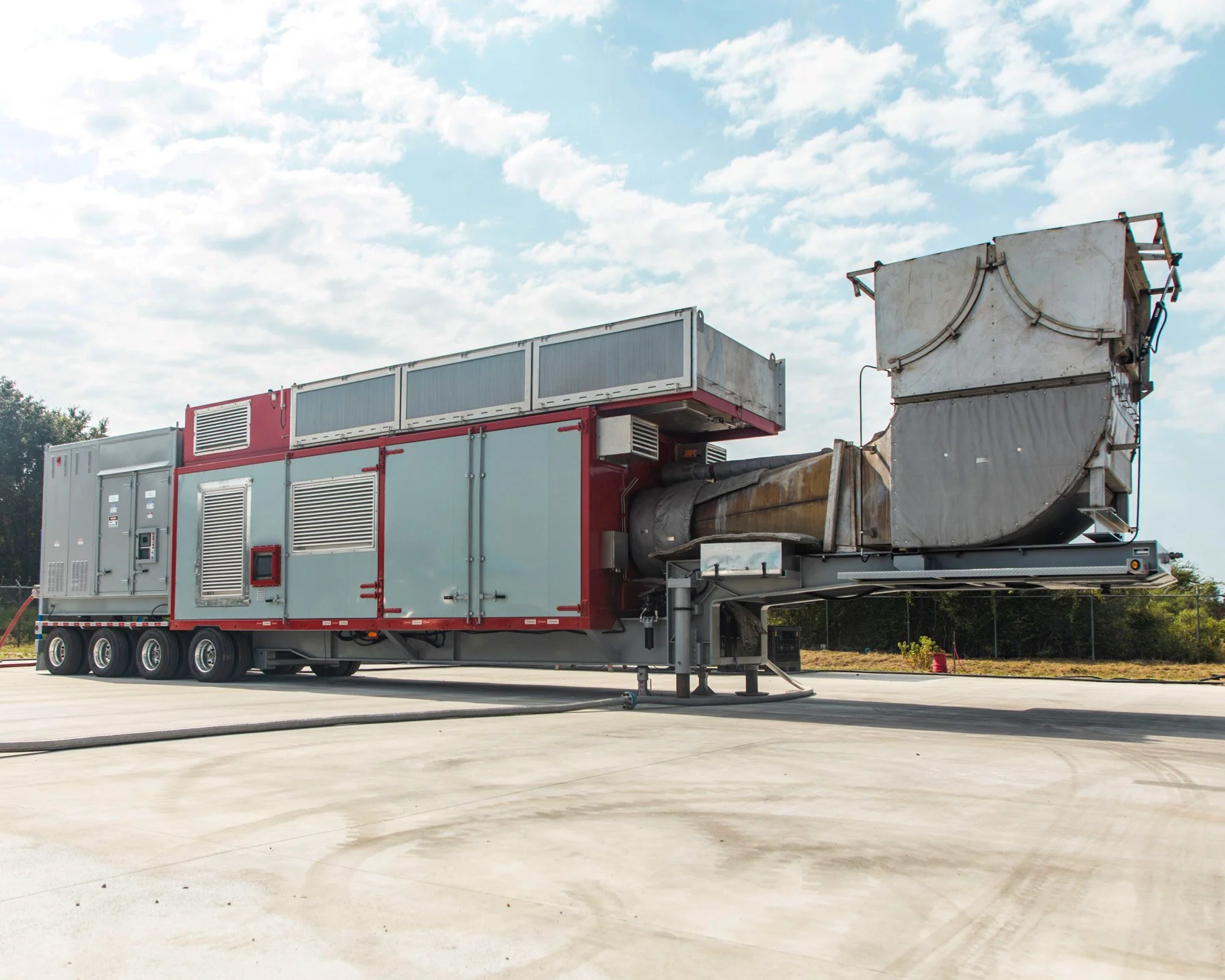

Interlink GT4.0 mobile gas turbine generator mounted on a road trailer, parked outdoors at facility.

The Interlink GT4.0 is a complete 4 megawatt power station built onto a single road-legal trailer. It arrives ready to run. A crew connects four things, levels it on its built-in legs, and it makes grid-quality power in about four hours. It runs on natural gas and other fuels, works on its own or tied to the grid, and is built around an aeroderivative turbine with millions of hours of service behind it.

Request GT4.0 details

Why choose the GT4.0

Mobile


One DOT-compliant trailer, 53 ft long and 13 ft 6 in tall for transport. The permit-friendly size avoids escort vehicles in most states. Bridge legal at 125,000 lb.

Rapid


About four hours to set up. Only four connections: APU, fuel gas, output power, and ground. Hydraulic leveling. Filtration, ventilation, and exhaust are built in.

Reliable


Aeroderivative Vericor ASE50B turbine, with over 15 million operating hours in tough military and commercial use. Fast starts and load changes with no impact on engine life.

Flexible


Grid-connected or island operation. Black start from an onboard battery or the 125 kW APU. Handles a wide range of gas quality, including wellhead gas.

Key specifications

  • Power output: 4 MW (about 4,834 kVA at 0.8 power factor)

  • Voltage and frequency: 13.8 kV, 60 Hz (other options available)

  • Generator: synchronous, air cooled (IP23/IC01), Class F/B insulation

  • Turbine engine: Vericor ASE50B aeroderivative, twin-shaft

  • Drive: cold-end drive, direct couple to planetary gear (8.83:1)

  • Acoustic enclosure: fully enclosed, rated 85 dB

  • Fuels: natural gas (primary), plus CNG, LNG, biogas, or diesel

  • Fuel gas supply: 250 psi nominal (200 minimum, 275 maximum)

  • Operation: base load, peaking, and cycling; grid-connected or island

  • Black start: onboard battery or 125 kW APU

  • Setup: about 4 hours, four connections, hydraulic leveling

  • Transport: 53 ft single trailer, 13 ft 6 in transport height, 125,000 lb gross weight

  • Controls: Unit Control Panel, touch-screen HMI, TCP/IP SCADA

  • Safety: integrated fire and gas detection, automated breaker operation, emergency shutdown

  • Also included: HV switchgear, motor control center, HVAC

Applications

  • Oil and gas fields: drilling, e-frac, and production facilities

  • Backup power and disaster relief

  • Standalone microgrids

  • Urban power applications
